AFT Blog

Welcome to the Applied Flow Technology Blog.
Scott Lang

Reaching Equilibrium: System Energy Balance in AFT Fathom and AFT Arrow

AFT Fathom and AFT Arrow both have the powerful ability to model heat transfer in pipes and heat exchangers, allowing you to represent these critical features of temperature-sensitive systems in your hydraulic model. However, without being able to see the affect heat transfer has on an entire system these features would be of limited usefulness. One of the most powerful aspects of AFT’s implementation of heat transfer is that energy is balanced across the entire system. For example, you can observe changes in pump or control valve operation when adding heat transfer to a remote part of a system. Looking at...
Continue reading
Recent Comments
Guest — Alan Vieira
boa tarde, estou usando o programa e não consigo fazer o balanço no tanque
Friday, 29 March 2019 17:04
Scott Lang
Hi Alan, We would like to help get your model up and running - if you send your model along with some more details about the prob... Read More
Wednesday, 03 April 2019 17:08
  2651 Hits
Applied Flow Technology

Bring the Heat: Modeling Heat Transfer in Heat Exchangers in AFT Fathom and AFT Arrow

Heat exchangers are some of the most expensive pieces of process equipment, so it is crucial that their pressure losses and heat transfer are well understood. AFT Fathom and AFT Arrow allow users to model heat exchangers within their piping systems. Pressure loss models include input K factors, resistance curves, or tube bundle information. When energy balances are being considered, users can choose between 11 heat transfer models in AFT Fathom and 12 heat transfer models in AFT Arrow to best meet their hydraulic modeling needs. While AFT Fathom and AFT Arrow can also model heat transfer in pipes, this blog...
Continue reading
  2948 Hits
Ben Keiser

Modeling Tube Side & Shell Side of a Heat Exchanger

It is possible to model the shell side and tube side of a heat exchanger in AFT Fathom and AFT Arrow where the “hot fluid and cold fluid” circuits can also be included for both sides of a heat exchanger in a single model file!  This can be accomplished by creating a "thermal link" between two heat exchangers and using the “Heat Transfer with Energy Balance (Multiple Fluids)” option in the System Properties window.

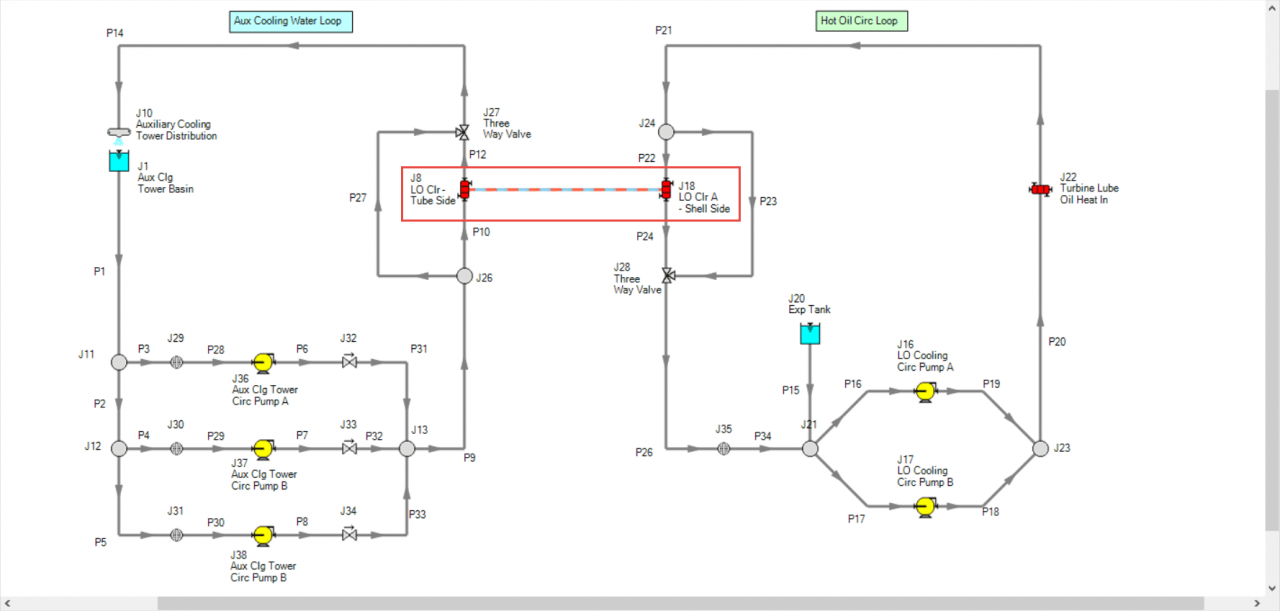

As shown in Figure 1 below, there are two separate systems modeled on the same Workspace.  The left side of the system is an auxiliary cooling water loop while the right side system is the hot oil circulation loop.  The two heat exchanger junctions that are highlighted in the red box, J8 and J18, represent the tube side and shell side of a single heat exchanger.  The cooling water circuit is on the tube side of the heat exchanger and the hot oil loop is on the shell side of the same heat exchanger.  These heat exchanger junctions are “thermally linked” together, as they represent the same physical heat exchanger.  Therefore, their resulting heat rates will be the same, but opposite in sign.

 b2ap3 large Thermal Linking Figure 1

An important requirement to keep in mind that will allow the modeling of two sides of a heat exchanger with the “thermal linking” feature is that both fluids on each side of the heat exchanger must remain in fully liquid phase for AFT Fathom (or fully gas phase for AFT Arrow).  Therefore, there cannot be any phase change in either fluid circuit or through the heat exchanger itself.

First step is to build a model of the system and include both cooling water and hot oil loops.  After all the pipes and junctions are laid out on the Workspace (but not defined), open up the System Properties window and choose the "Heat Transfer with Energy Balance (Multiple Fluids)" option as displayed in Figure 2.  A single “default” fluid must be selected and defined.  The individual fluids used in each loop will be defined soon.

 b2ap3 large Thermal Linking Figure 2

Next, the pipes and junctions can be defined with their various thermal models and characteristics (except for the two heat exchanger junctions that will need to be modeled as two sides of one heat exchanger. This will be specified later).

In order to use the "Multiple Fluids" option in System Properties so that two sides of a heat exchanger can be thermally linked, "Fluid Groups" must be created.  Before fluids can be assigned to specific “Fluid Groups”, separate groups of all the pipes and junctions in each individual circuit need to be created first.

As shown in Figure 3, select all the pipes and junctions that make up one of the circuits, such as the cooling water loop.  Then from the Edit menu, click "Groups", then "Create", and give that group of pipes and junctions that are selected, a name.

 b2ap3 large Thermal Linking Figure 3

Then, select the pipes and junctions that make up the hot oil side. With those objects selected, click "Edit", then "Groups", then "Create" and give the hot oil loop a name.

After two separate groups for each loop have been created, the specific fluids that will be used for each group can now be defined.  Click "Edit", then "Groups", then "Fluids".  Check both boxes so that both fluid groups can be used.

For the cooling water circuit, click the box with the little dots in the "Fluid" column, then specify the fluid properties, like that in Figure 4.  Any of the fluid options are available, except for "User Specified Fluid" (because the "User Specified Fluid" option does not model heat transfer).

 b2ap3 large Thermal Linking Figure 4

Then, specify the fluid properties for the hot oil loop by clicking on its box with the little dots.

 b2ap3 large Thermal Linking Figure 5

After a particular fluid has been chosen for each fluid group, click OK.

Now, the two heat exchangers can be "thermally linked" together.

Open one heat exchanger, and on the Thermal Data tab, specify one of the Effectiveness-NTU thermal models, then check the box to "Link to Heat Exchanger", and select the other heat exchanger from the drop-down menu that you want to link to. Then specify the required parameters.  Figure 6 illustrates how to thermally link the cooling water loop tube side with a “Counter-Flow” thermal model and it will link to the Hot Oil Loop heat exchanger.

Continue reading
Recent Comments
Guest — Shashank
thanks for your help.
Wednesday, 01 April 2015 05:46
Guest — Devendra Patil
can i design same model without using hot side secondary heat exchanger, which in this case is j22, by just setting fluid temperat... Read More
Wednesday, 01 April 2015 06:02
Ben Keiser
Hi Devendra, You could potentially build the same model without using J22 and set the temperature in the supply tank. However, k... Read More
Thursday, 02 April 2015 18:48
  8202 Hits
John Rockey

Balance Energy At Junction … What?

AFT Fathom has the ability to model heat transfer. The default mode (found in system properties) is “Constant Fluid Properties”. To avoid confusion in the default mode, several of the heat transfer input fields and option boxes are invisible or disabled until one of the following heat transfer modes are employed:  Heat Transfer With Energy Balance (Single Fluid)Heat Transfer With Energy Balance (Multiple Fluids) Upon selecting one of these heat transfer modes, the user may notice an option box labeled “Balance Energy at Junction”; found at the lower left of the first tab in the properties window for the Assigned Pressure...
Continue reading
  3903 Hits
