AFT Mercury Views

The following thumbnails represent different screenshots for AFT Mercury 5.5. For a larger images, please click on the appropriate thumbnail.

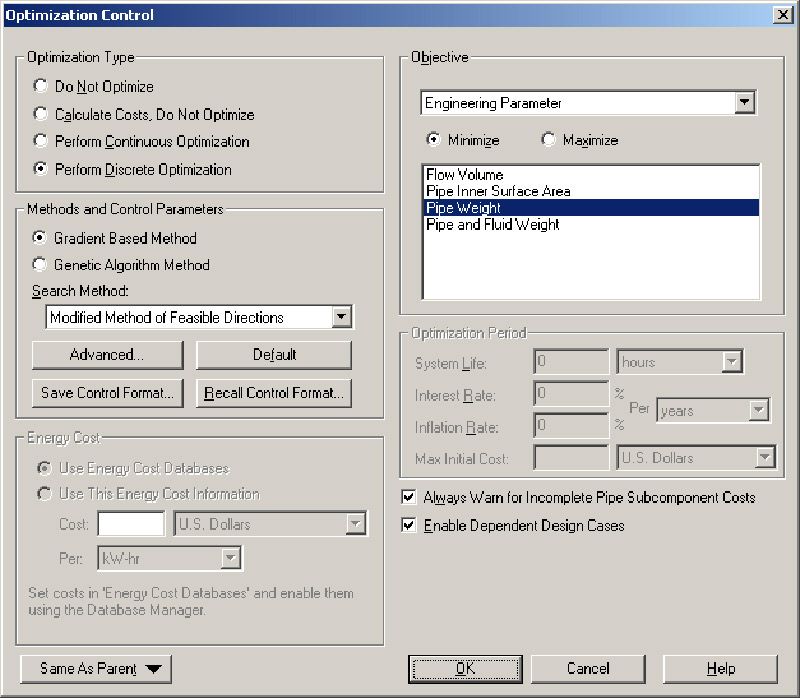

Optimization Control
Select optimization objective and method

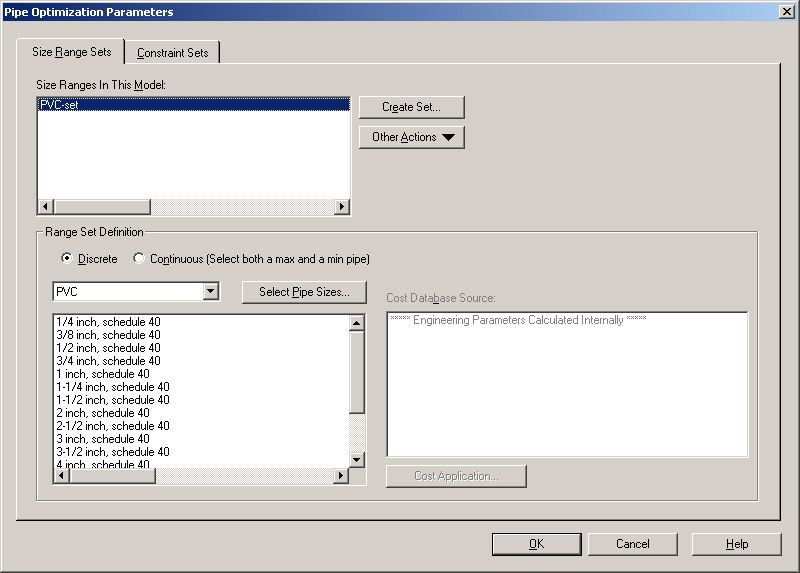

Pipe Optimization Parameters / Size Range Sets
Specify pipe materials and sizes to be considered by AFT Mercury when determine optimum system sizing

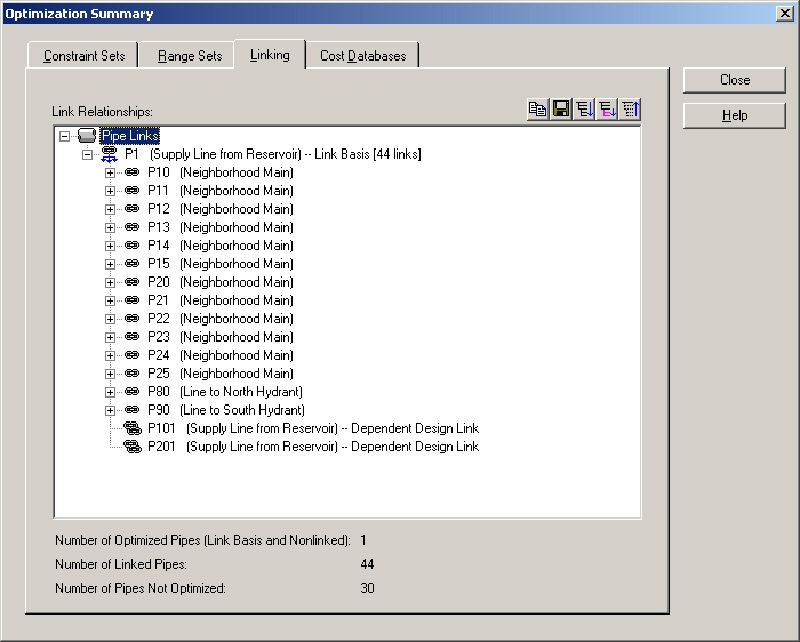

Pipe Linking
Force size and material commonality for pipe groups as desired

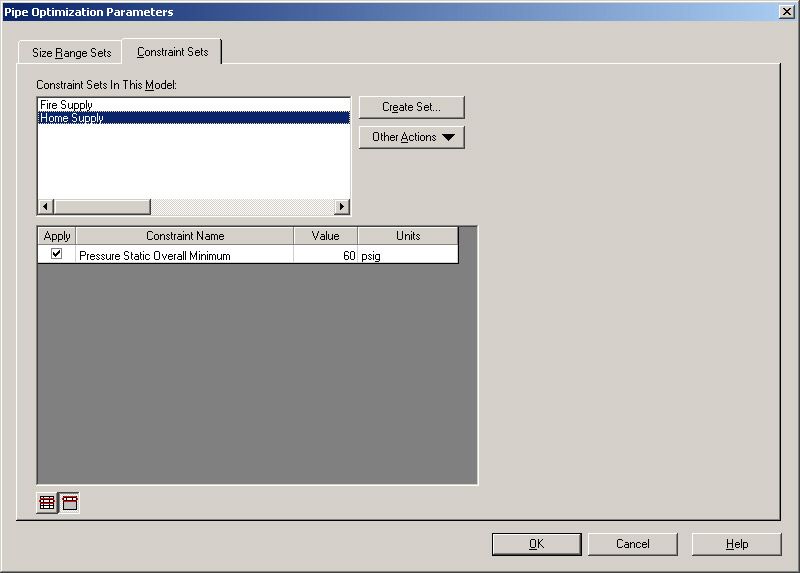

Pipe Optimization Parameters / Constraints
Specify design requirements to be met by AFT Mercury when determining optimum system sizing


Multiple Design Cases
Workspace view of multiple system design cases

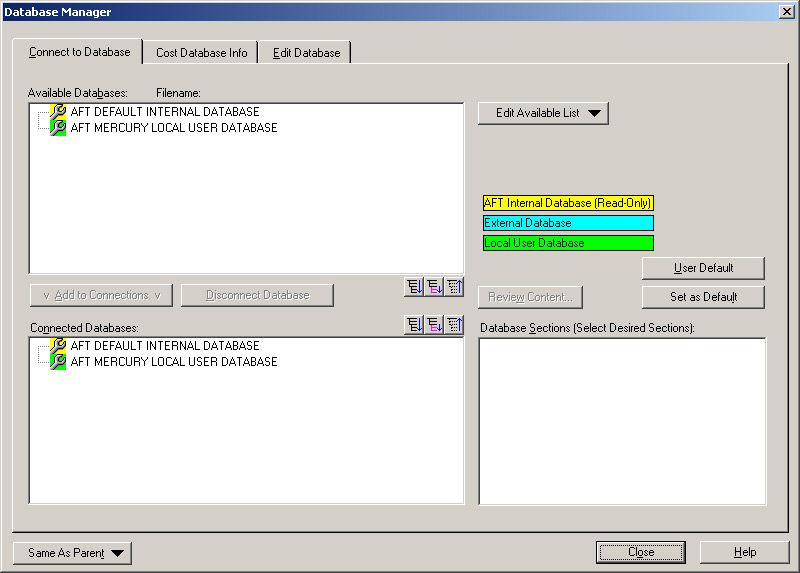

Database Manager
View and manage databases used

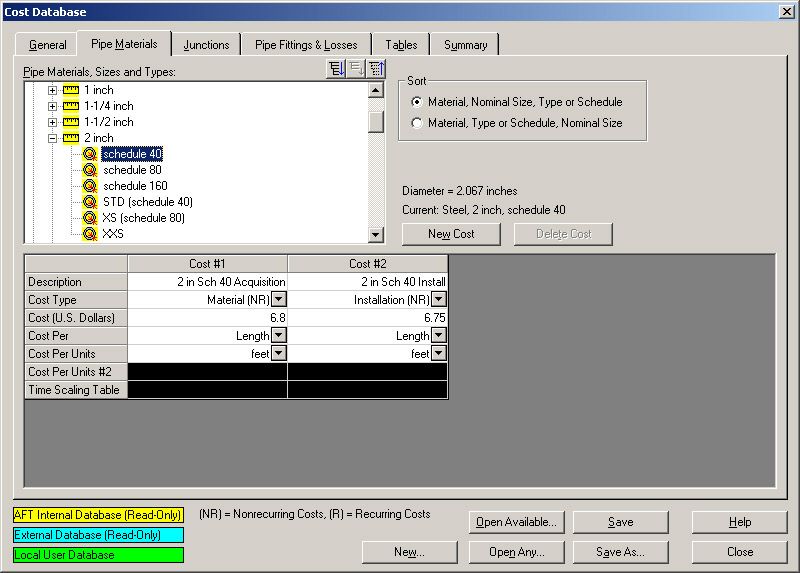

Cost Database
Specify, view and manage data used for cost optimization
